Brain Computer Interface

The wireless brain signal measuring device tracks brain signals with high resolution data. Brain Dynamics began developing wireless brain signal measuring devices in 2014, with the intention to create high quality hardware that is both user friendly, economical and safe.

Brain signal

High gain, Low noise,
Smooth signal.

Connection

Bluetooth low energy,
Customisable connection.

Standard

Medical standard component,
Biocompatibility.

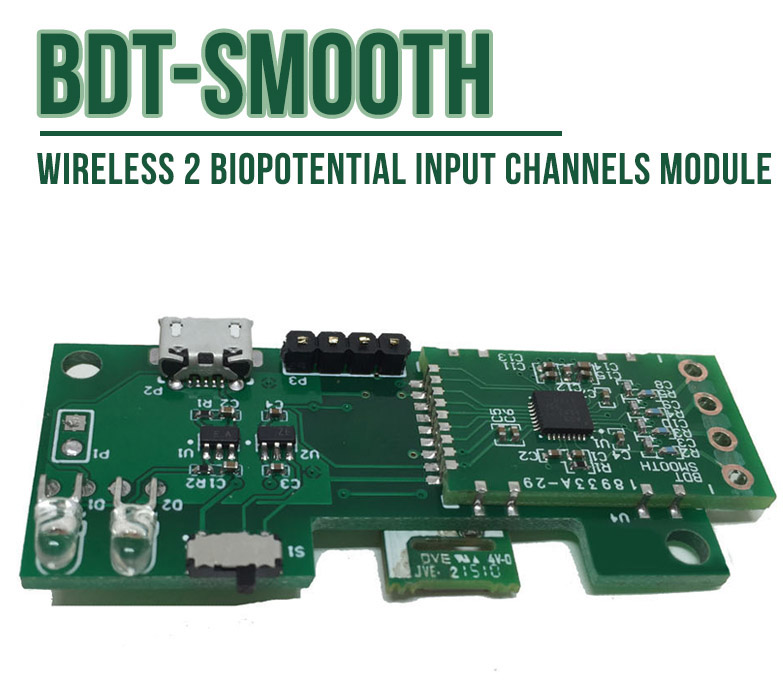

  • BDT-Smooth
BIOPOTENTIAL INPUT

2 biopotential input channels/ground/DLR.
Brain (EEG) / Heart (ECG).
125 samples per second.

ANALOG FRONT-END

TI ADS 1292 [ADC].
24xGain , Low noise , Smooth signal.
EMF / EMI Analog Filter.
24 bit channel input resolution.

WIRELESS MCU WITH BLE

TI CC2640.
Powerful ARM® Cortex®-M3 + M0 32 bit. Up to 48 MHz clock speed.
Bluetooth L0ow energy 4.1.

POWER MANAGEMENT

Rechargable LiPo battery which 5 hr lifespan. Low energy consumption design.
Charges via micro-USB.
